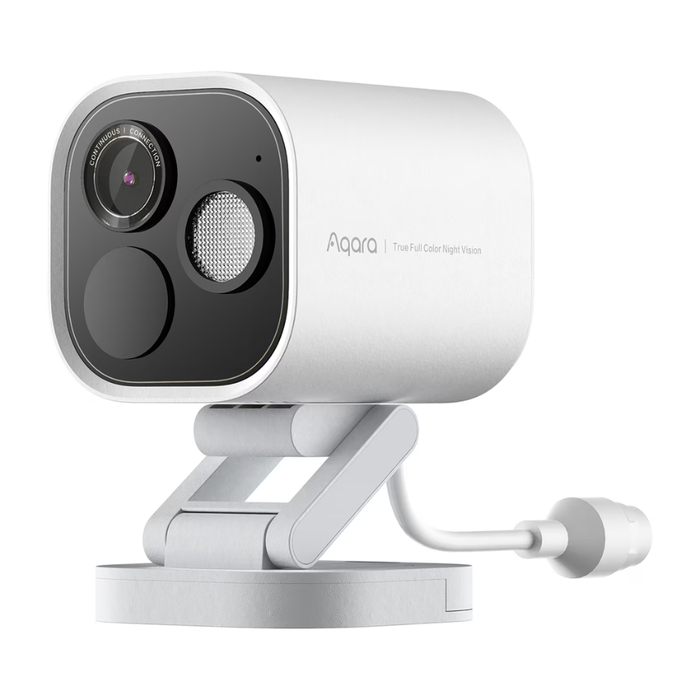

The Aqara Camera Hub G5 Pro (model CH-C07D) is a versatile smart security solution that combines high-resolution video capture with advanced AI capabilities and seamless smart home integration. Designed for both indoor and outdoor use, this device serves as a 2.6K HD camera and a multi-protocol smart hub, supporting Zigbee, Thread, and Matter protocols.

Equipped with a 4.0MP sensor and a wide 133° field of view, the G5 Pro delivers clear and detailed images. Its f/1.0 aperture allows for enhanced low-light performance, capturing up to four times more light than traditional f/2.0 lenses. The camera features True Color Night Vision, providing full-color images even in low-light conditions. Additionally, the built-in spotlight and 100 dB speaker offer deterrence and two-way audio communication.

The G5 Pro's AI capabilities include local object and sound detection, powered by its built-in neural processing unit (NPU). This allows the camera to identify faces, vehicles, and packages, and to alert users to potential intrusions or obstructions. It also supports HomeKit Secure Video, ensuring secure cloud storage and integration with Apple HomeKit.

With its dual-band Wi-Fi connectivity, the Aqara Camera Hub G5 Pro offers flexible installation options and robust performance. Its compact design and advanced features make it a suitable choice for users seeking a reliable and intelligent security solution.

Model Information
Model Number: CH-C07D (Wi-Fi version)
Type: Smart Security Camera & Hub
Color Options: White, Gray

Camera Specifications
Resolution: 2688 × 1520 (Quad HD)
Image Sensor: 1/1.8" CMOS sensor
Aperture: f/1.0
Field of View (FOV): 133° diagonal
Night Vision: True Color Night Vision with dimmable spotlight (3000K, 3W, 120° beam angle)
Audio: Two-way audio with built-in speaker and microphone
Spotlight: Integrated for enhanced night visibility and deterrence

Smart Hub & Connectivity
Protocols Supported: Wi-Fi (IEEE 802.11 b/g/n/ac, 2.4–5 GHz), Zigbee & Thread (IEEE 802.15.4), Bluetooth (MagicPair)
Smart Home Integration: Compatible with Apple HomeKit, Google Assistant, Amazon Alexa, and Samsung SmartThings
Matter Support: Functions as a Matter Controller, Thread Border Router, and Zigbee Hub
RTSP Support: Yes, for custom video integration
AI & Detection Capabilities
Local AI Processing: Built-in NPU for on-device object and sound detection

Detection Features:
Object Detection: Faces, vehicles, packages
Audio Detection: Baby crying, alarms, barking, coughing
Detection Range: PIR detection angle of 100° horizontal and 65° vertical

Storage Options
Local Storage: Built-in eMMC storage (8GB or 32GB options)
Cloud Storage: Free 30-day trial upon first internet connection
Additional Storage: Supports NAS and iCloud via HomeKit
RTSP Streaming: For integration with NAS or third-party systems

Physical Specifications
Dimensions: 70.5 × 70.5 × 89 mm (2.78 × 2.78 × 3.50 in.)
Weight: Approximately 0.4 kg (0.88 lbs)
Mounting Options: Wall, ceiling, or tabletop
Operating Temperature: -30°C to +50°C (-22°F to +122°F)
Operating Humidity: 0–95% RH, non-condensing
Ingress Protection: IP65-rated for water and dust resistance

Power Requirements
Power Input: USB-C 5V 2A
Power Consumption: Approximately 5W

Included Accessories
Aqara Camera Hub G5 Pro (CH-C07D)
USB-C Power Cable
Mounting Bracket and Screws
Quick Start Guide
Certifications
Security Certifications: Supports HomeKit Secure Video

Additional Features
Voice Control: Compatible with voice assistants for hands-free operation
Firmware Updates: Regular updates via Aqara Home app
Privacy Protection: End-to-end encryption for video and audio streams
